吸气量:540L 气混流量:2200L

Air inflow:540L Air mixingflow:2200L

DC power supply, safe and convenient, ensuring personal safety
Noise<35 decibels, using silicone silent gaskets and high-performance ceramic shafts, effectively solving the noise problem

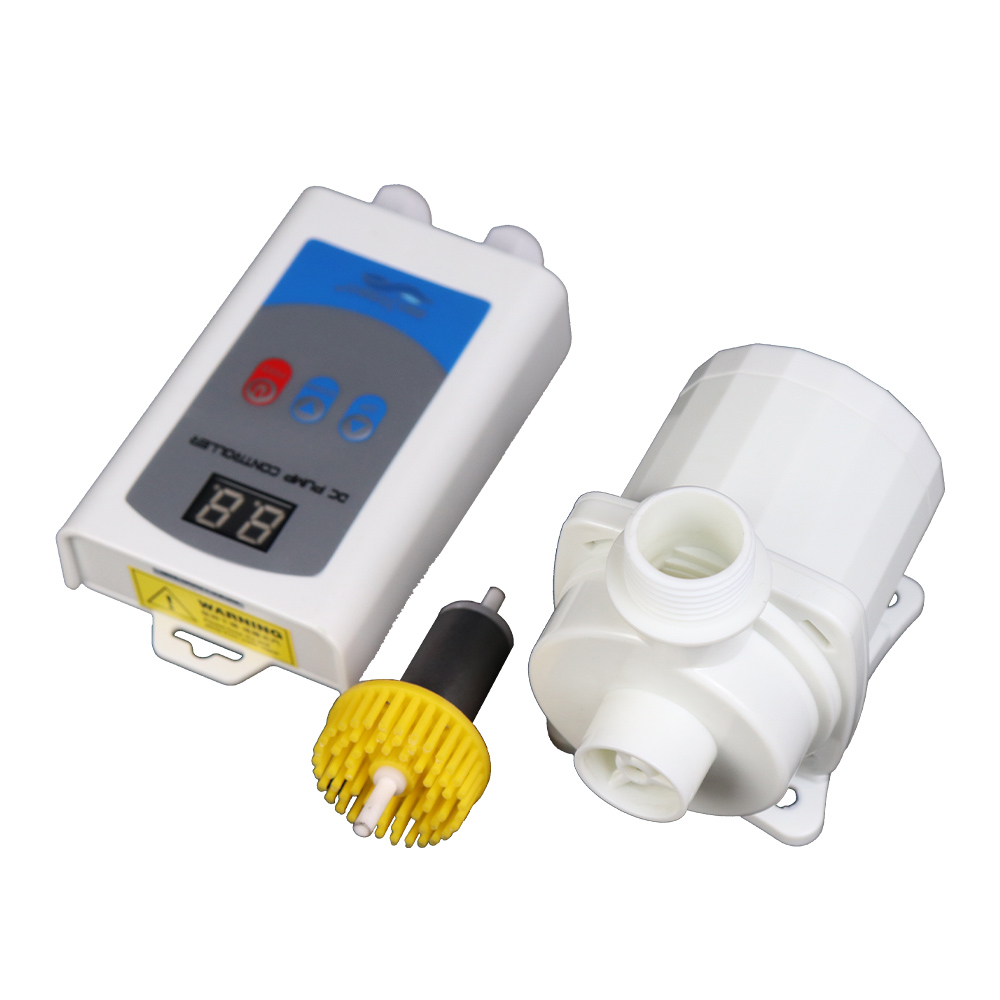

Multi functional control box for easy and convenient operation. 5 functions, 9 gears, can be freely switched, intelligent gear shifting

Inquiry Now Product manual download

Product Details

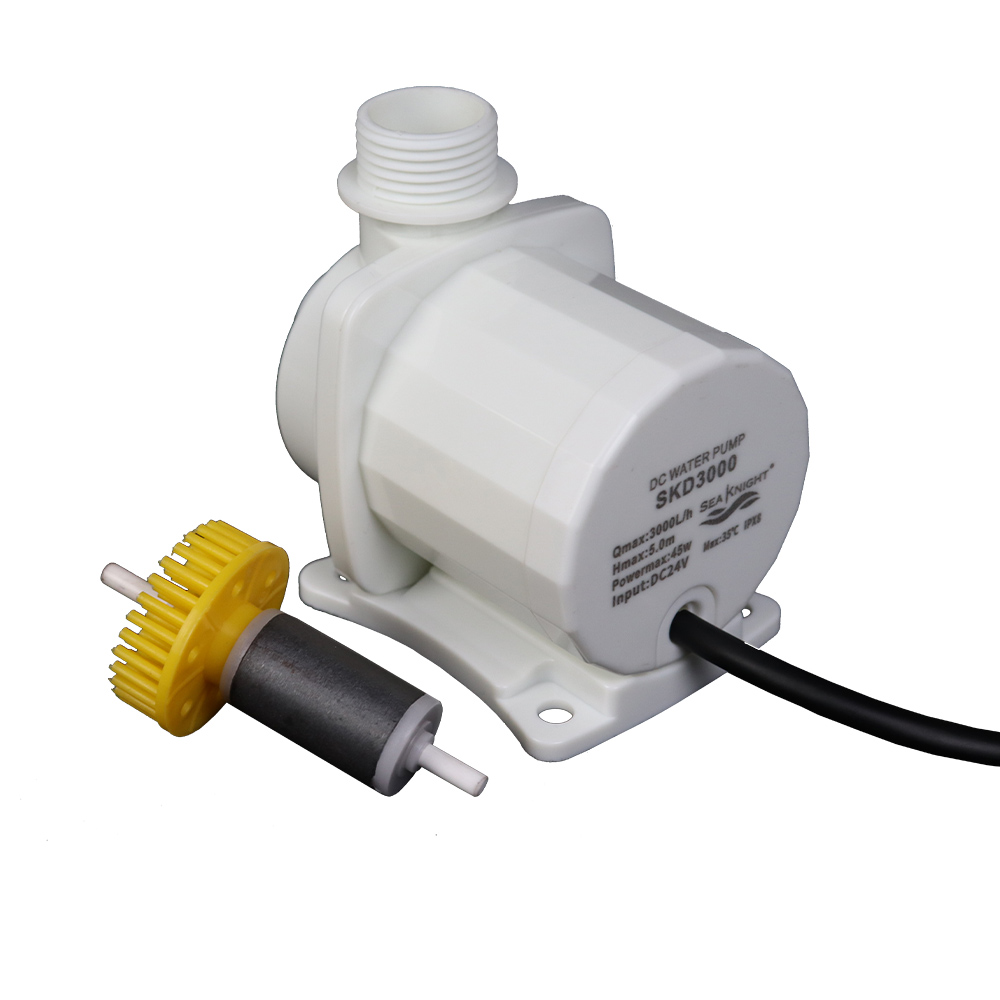

The pump is mainly used in protein skimmer. The pump uses needle brush pump blades. When it works, gas is introduced into the water in the pump. The needle brush pump blades hit the water and gas to form bubbles. The surface active ingredients or hydrophobic micro suspended solids in the water are adsorbed on the bubbles and float to the upper part of the separator to form a foam layer to separate them. Organic substances in water, such as proteins, have amphiphilic structures and are easily adsorbed on bubbles, thus enabling their separation. So the needle brush water pump plays a crucial role in the protein skimmer.


Information

Model:

JD3000S-T

Maximum air inflow:

540L/h

Maximum air mixingflow:

2200L/h

Maximum air mixing power:

10W

Protein skimmerdiameter:

φ70-φ130

Degree of Protection:

IP X8

Voltage:

DC 24V

Dimensions(LxWxH)mm:

76.5x49x67.5

N.W:

0.37 kg

Color box dimensions(LxWxH)cm:

13.5*12.5*10.5

QTY./G.W

30pcs/15.5kg












Model

Voltage

Maximum air inflow

Maximum air mixingflow

Maximum air mixing power

Pump body line length

Suitable for fish tank size

Remarks

JD1000S

DC24V

330L/h

700L/h

10W

3M

φ70-φ130

/

JD2000S

DC24V

400L/h

1400L/h

13W

3M

φ130-φ160

JD2000S-T

DC24V

480L/h

1600L/h

15W

3M

φ130-φ160

Standard controller

JD3000

DC24V

540L/h

2200L/h

28W

3M

φ130-φ160

JD5000S

DC24V

900L/h

3200L/h

40W

3M

φ200

JD7000S

DC24V

1100L/h

4200L/h

55W

3M

φ180-φ250

JD9000S

DC24V

1300L/h

4800L/h

65W

4M

φ250

JD13000

DC24V

3000L/h

7000L/h

96W

4M

φ300-φ400
