Air inflow:540L Air mixingflow:2200L

DC power supply, safe and convenient, ensuring personal safety
Noise<35 decibels, using silicone silent gaskets and high-performance ceramic shafts, effectively solving the noise problem
Multi functional control box for easy and convenient operation. 5 functions, 9 gears, can be freely switched, intelligent gear shifting

Inquiry Now Product manual download

Product Details

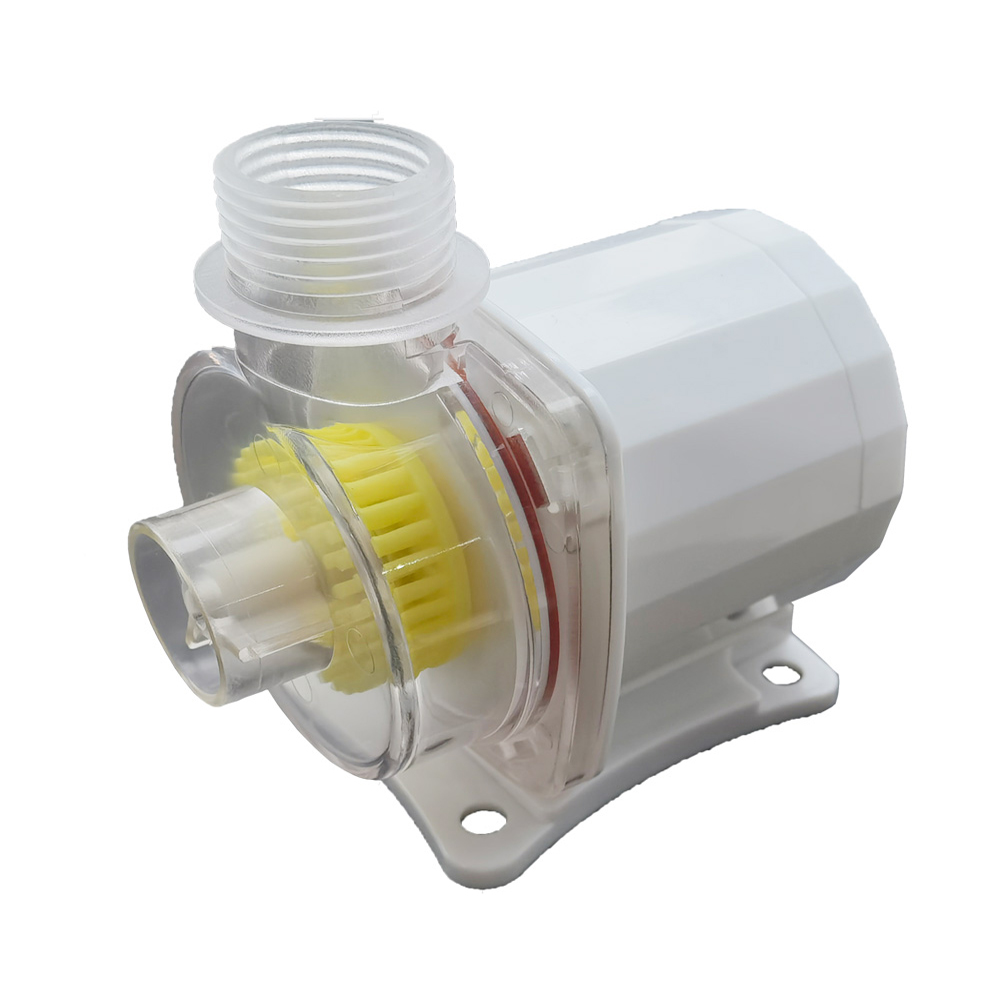

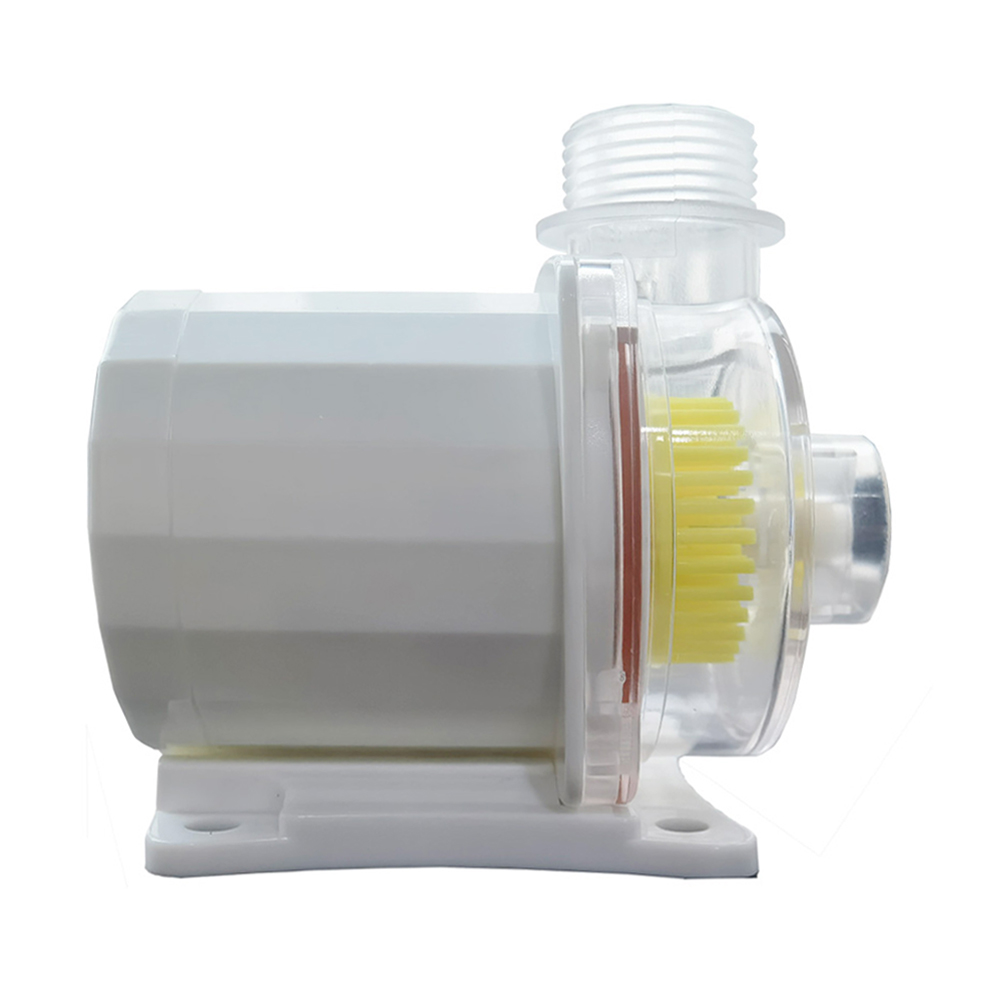

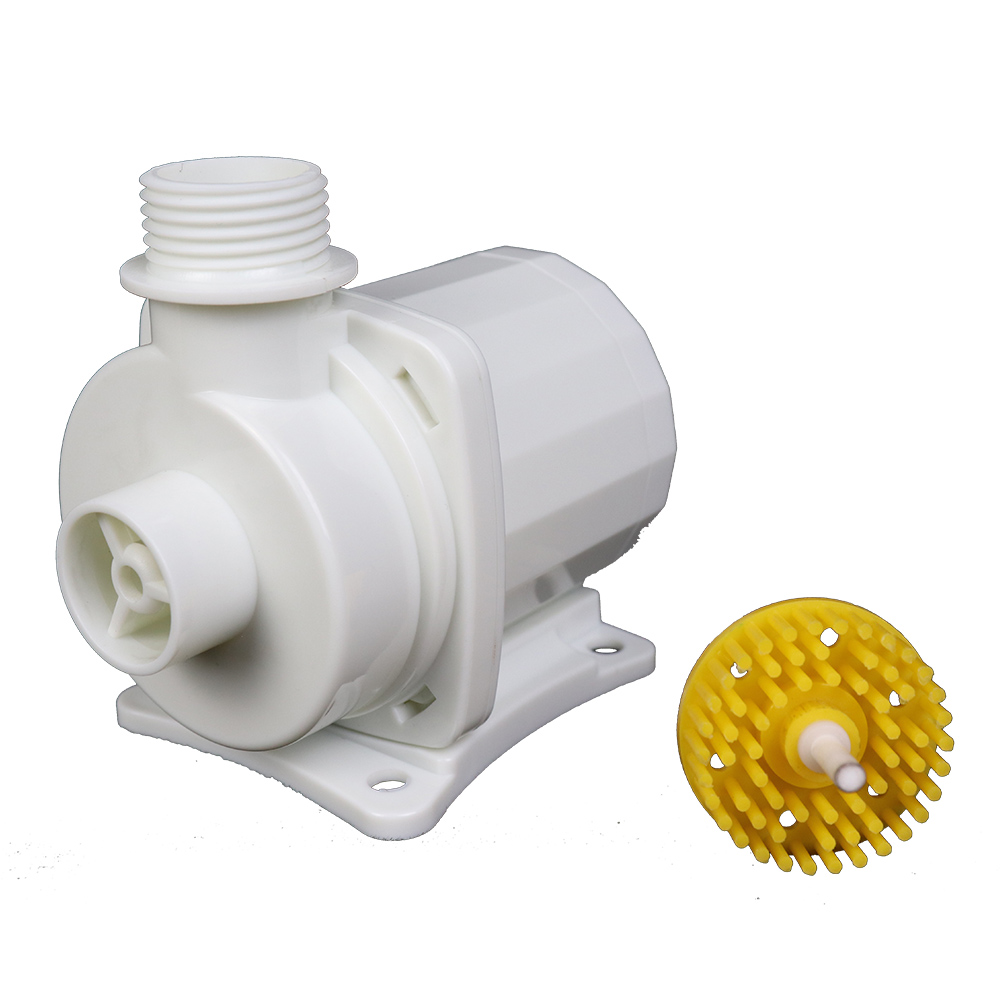

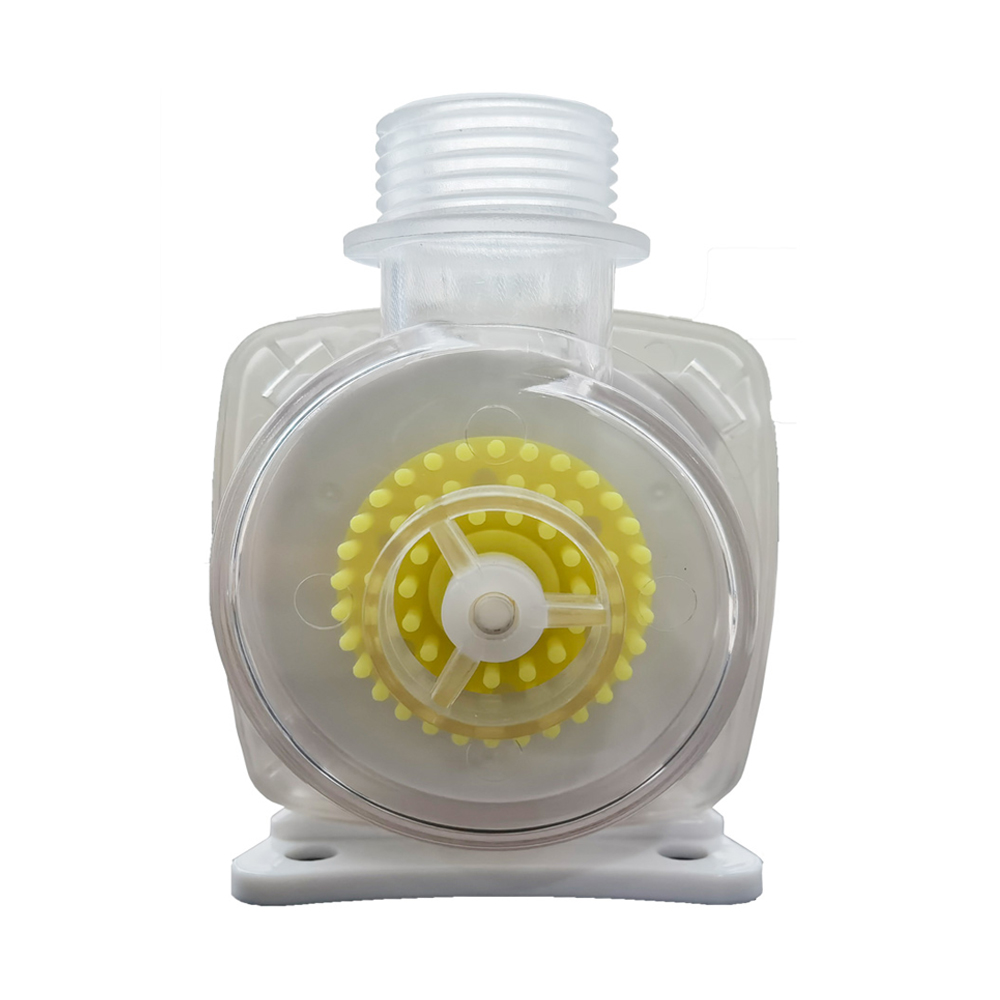

The pump is mainly used in protein skimmer. The pump uses needle brush pump blades. When it works, gas is introduced into the water in the pump. The needle brush pump blades hit the water and gas to form bubbles. The surface active ingredients or hydrophobic micro suspended solids in the water are adsorbed on the bubbles and float to the upper part of the separator to form a foam layer to separate them. Organic substances in water, such as proteins, have amphiphilic structures and are easily adsorbed on bubbles, thus enabling their separation. So the needle brush water pump plays a crucial role in the protein skimmer.

Information
Model：	JD3000S
Maximum air inflow：	540L/h
Maximum air mixingflow：	2200L/h
Maximum air mixing power：	28W
Protein skimmerdiameter：	φ130-φ160
Degree of Protection：	IP X8
Voltage：	DC 24V
Dimensions（LxWxH）mm：	946790
N.W：	1.05kg
Color box dimensions（LxWxH）cm：	1.51613
QTY./G.W	13pcs/16kg

Model	Voltage	Maximum air inflow	Maximum air mixingflow	Maximum air mixing power	Pump body line length	Suitable for fish tank size	Remarks
JD1000S	DC24V	330L/h	700L/h	10W	3M	φ70-φ130	/
JD2000S	DC24V	400L/h	1400L/h	13W	3M	φ130-φ160	/
JD2000S-T	DC24V	480L/h	1600L/h	15W	3M	φ130-φ160	Standard controller
JD3000	DC24V	540L/h	2200L/h	28W	3M	φ130-φ160
JD5000S	DC24V	900L/h	3200L/h	40W	3M	φ200
JD7000S	DC24V	1100L/h	4200L/h	55W	3M	φ180-φ250
JD9000S	DC24V	1300L/h	4800L/h	65W	4M	φ250
JD13000	DC24V	3000L/h	7000L/h	96W	4M	φ300-φ400
